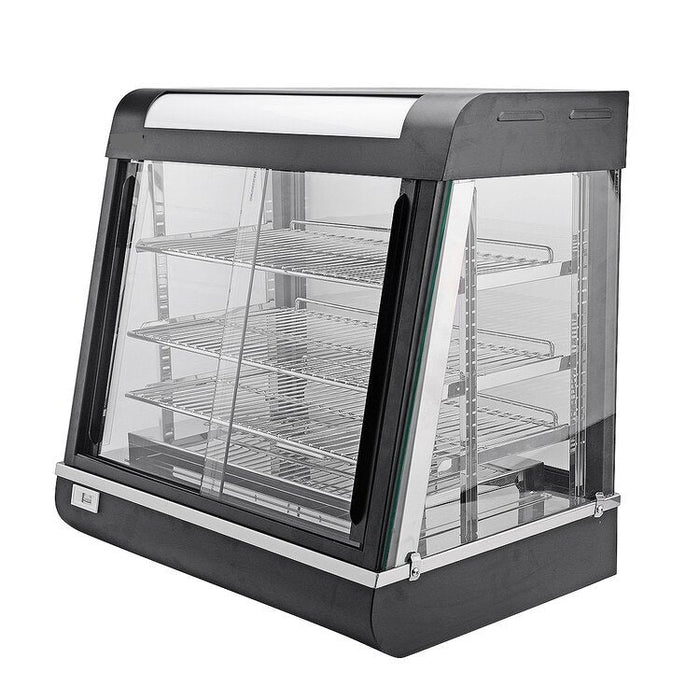

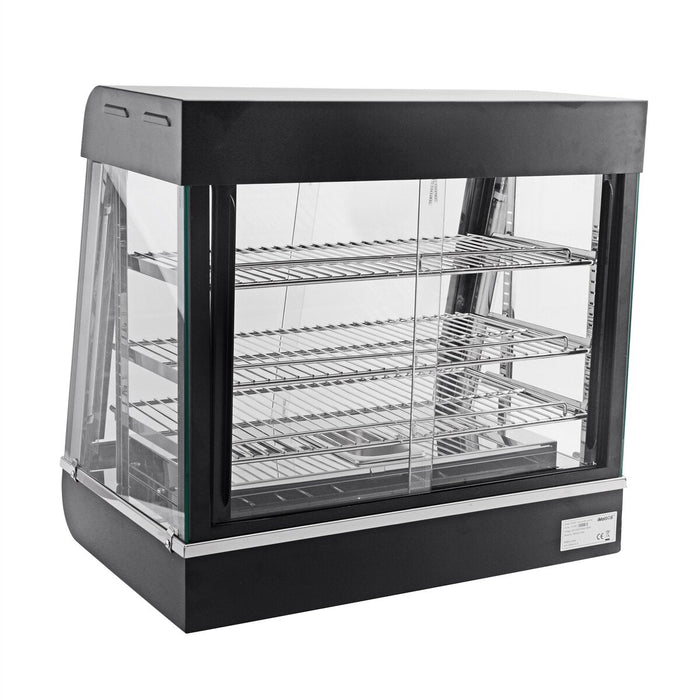

Hot Display Cabinet - 110 Litres
Model Number: FM26
The Hamoki Heated Display Cabinet is perfect for merchandising a wide variety of hot food products, such as sausage rolls, pies and pasties. Featuring a 150 litre capacity over three shelves, the merchandiser also includes attractive curved glass and internal lighting to help maximize impulse purchases of hot food.
- Cool to touch plastic handle
- Water reservoir at the bottom to add humidity when needed
- Extra deep reservoir GN1/9*2.5 to last for whole day
- Three levels of shelves inside chamber
- Shelf height can be adjusted
- Rubber seal between door and frame to prevent heat loss
- Vertical fluorescent lamp on both sides for better food display
- Transparent cover on fluorescent lamps
- Filament lamp on top for advertising posters to attract customer
- On/off switch for lamps
- Anti-slip rubber foot
- Heating indicator
This product is covered with a Manufacturer’s 1 Years Parts Warranty. (Please note, bulbs are not included within the Warranty.)
Please note, that with ongoing enhancements and improvements, this product may vary slightly from the content displayed.

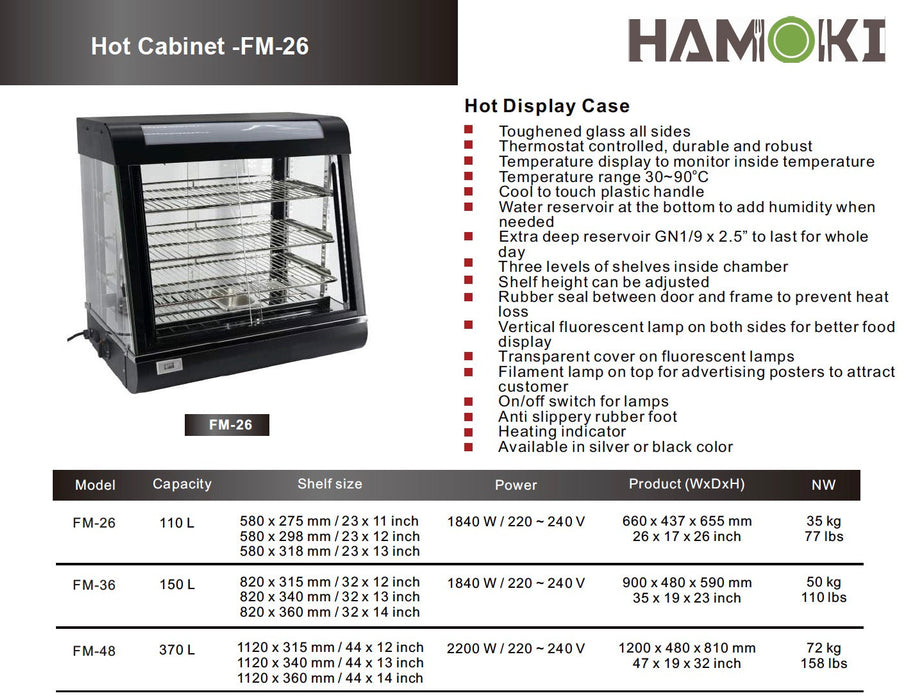

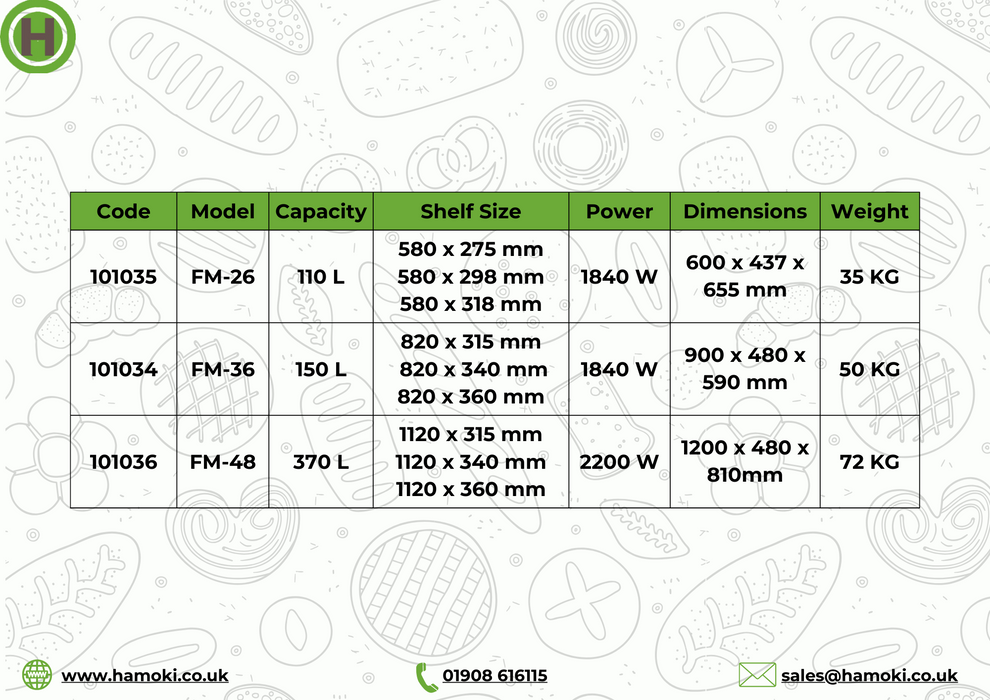

DIMENSIONS: 660 x 437 x 655 mm
SHELF 1: 580 x 275 mm
SHELF 2: 580 x 298 mm
SHELF 3: 580 x 318 mm
CAPACITY: 110 L
WEIGHT: 25 KG
POWER: 1.84 KW / 240 V 50 Hz
TECH SHEET
ASSEMBLY INSTRUCTIONS
EXPLOSION DRAWING
WIRING DIAGRAM
